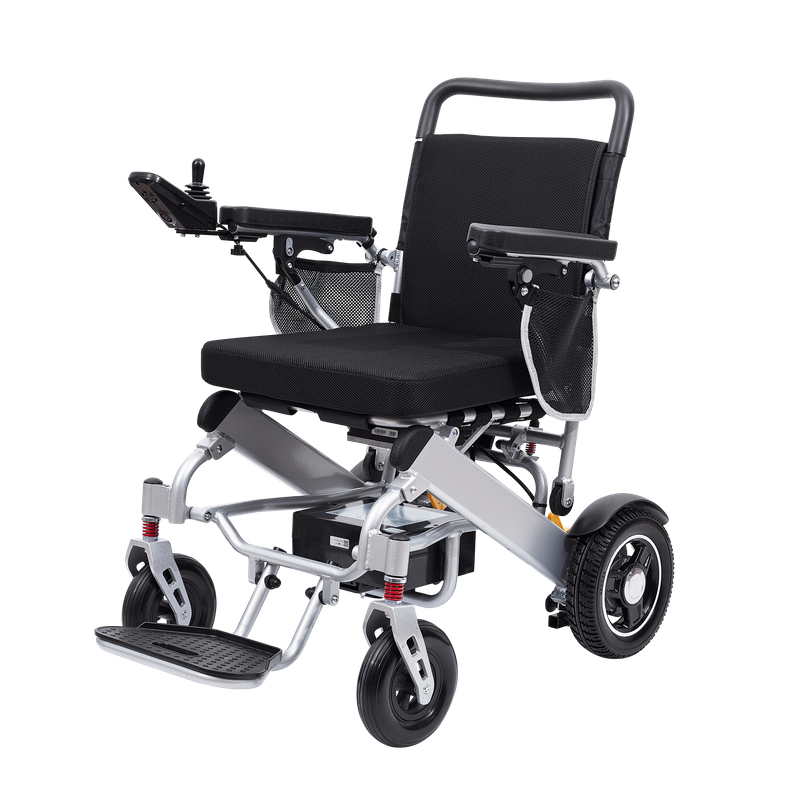

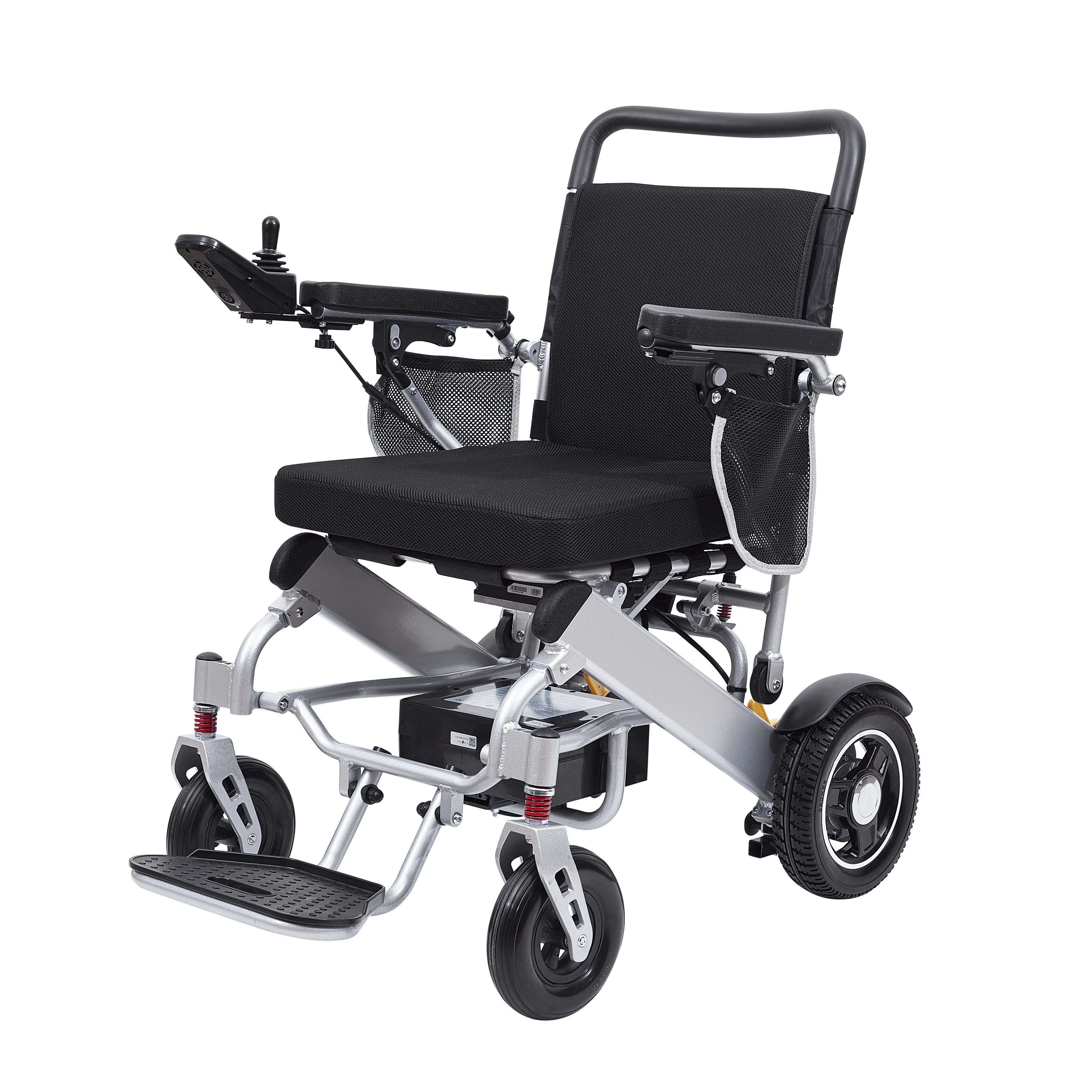

Baichen Electric Wheelchair For Disabled BC-EA530B

Motor: High performance 250W*2 Brushless
Battery: 24V 13Ah Lithium
controller: lmport 360° Joystick
Max Loading: 130KG
Charging Time: 4-6h
Forward Speed: 0-8km/h
Reverse Speed: 0-8km/h
Turning Radius: 57cm
Climbing Ability: ≤13°
Driving Distance: 22-27km
Seat: W46*L46*T7cm
Backrest: W43*H40*T3cm
Front Wheel: 8inch(solid)
Rear wheel: 10inch(solid)
Size(Unfolded): 92*57*94cm
Size(Folded): 56*92*35cm
Packing Size: 67*47*83cm
G.w.: 29KG
N.w.(with battery): 24.5KG
N.w.(without battery): 21KG

  • BC-EA530B

  • Baichen

High-performance clever electronicbrakes stop the hand stop do not slip manually stop thebrakes stop thebrakes when the machine stops give you a little protection

The controller can be installed left or right, depending on the operator's preferences.

The rear anti-tilt wheel prevents the electric wheelchair from moving uphill and backward and flattening too much to turn backwards.

High-quality tires that give higher traction and are ideal for a variety of road surfaces, including grass ramps. speed bumps, bricks, and mudslides

Easy changeover between manual and electrical modes It is simple to return home without power.

Hercules Lite Portable Electric Wheelchair use the aircraft grade aluminum alloy frame which makes it lighter and durable, it weighs only 21kg.





Baichen medical instrument co., LTD., founded in 1998, is a high-tech industry who focus on the wheelchair product research, development, production and sales .

Our factory is located in Jinhua Yongkang, with a factory building area of more than 20000 square meters and 120+ employees. Our company has 60 sets of frame processing equipments such as punching machines, pipe bending machines, electric welding machines, etc.; 18 sets of injection molding machines; 3 sets of American Binks painting lines and UV plating lines; 4 sets of finished assembly lines ,which occupy an important position in the field of wheelchairs in China.

After many years of growth, our company has amassed a wealth of experience. We also had our own concepts for product development and design, which helped us carve out a distinct niche in both domestic and international markets. As a result, we were able to export our products to the USA, Canada,United Kingdom, Germany, and other markets.

We have the best products, best service, best credit, baichen medical has brilliant achievements in the field of auxiliary medical supplies and completed many large hospitals, rehabilitation institutions and other supporting services.We would like to become your most reliable long-term partner.
